·        Two video inputs

·            Moveable line of text

·        Composite video or Y/C inputs and output

·            Horizontal / Vertical image mirror / flip

·        High resolution 768 x 576 pixels  (CCIR PAL format)

·            4 stored setups

·        Software switchable between CCIR-PAL and EIA-NTSC

·            Powers up with  setup-1

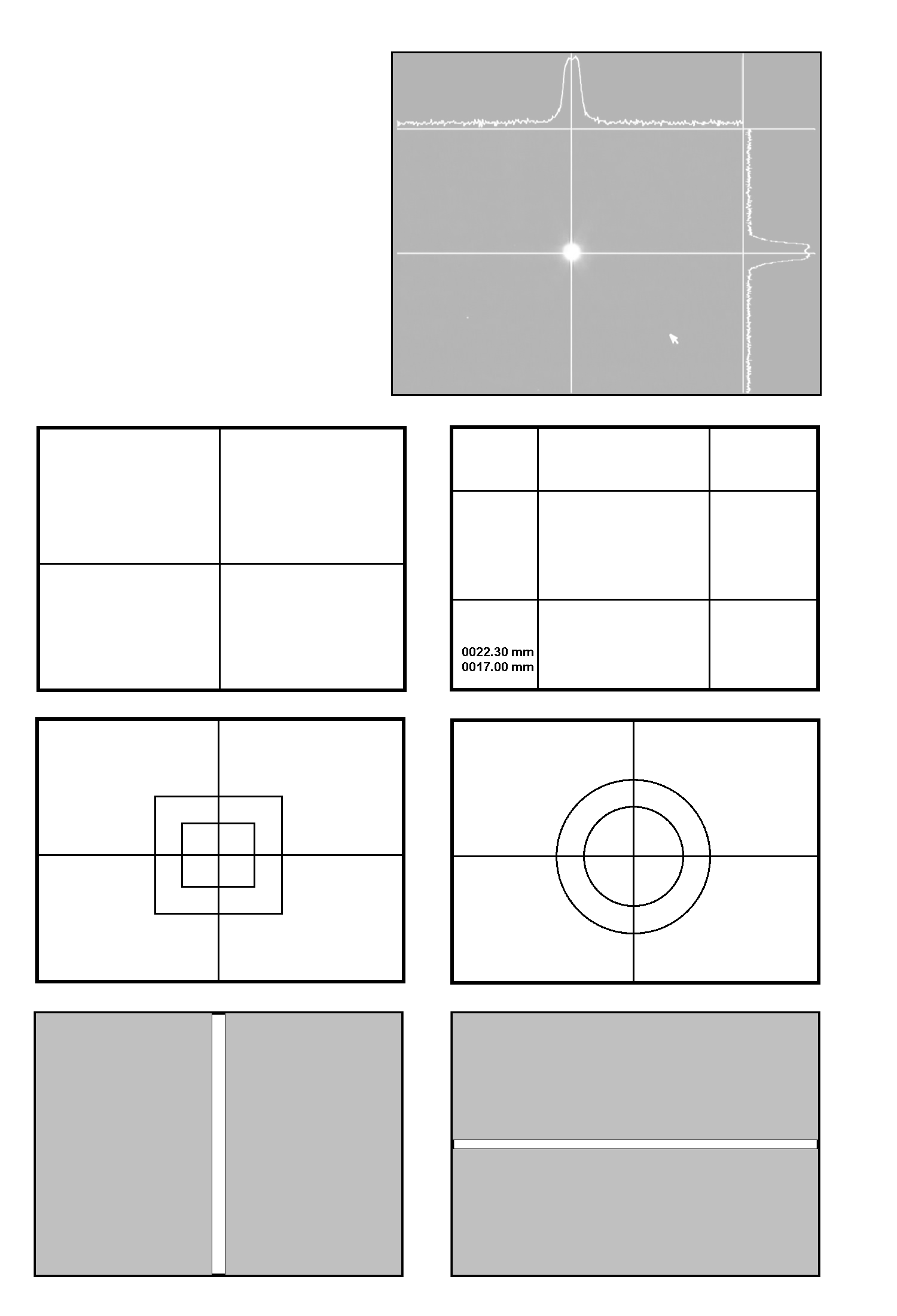

·        Fixed single Reticule

·            Mouse driven (PS2)

·        Moveable single crosshairs

·            Unit to be remote from mouse, power and cabling

·        Moveable twin crosshairs

·            Feature rich hierarchical menu

·        Twin crosshairs with measurement

·            BNC (Composite video) input and outputs

·        Moveable Triple crosshairs

·            MiniDIN (Y/C video) input and outputs

·        Moveable Reticule and 2 concentric boxes

·            Low power

·        Moveable Reticule and 2 concentric circles

·            User replaceable power source (12V, 1A) and mouse

·        White / black reticules

·            Configurable logic processor

·        Solid or a selection of dashed reticules

·            ARM CPU

·        Left – Right screen split

·        Top – Bottom screen split
